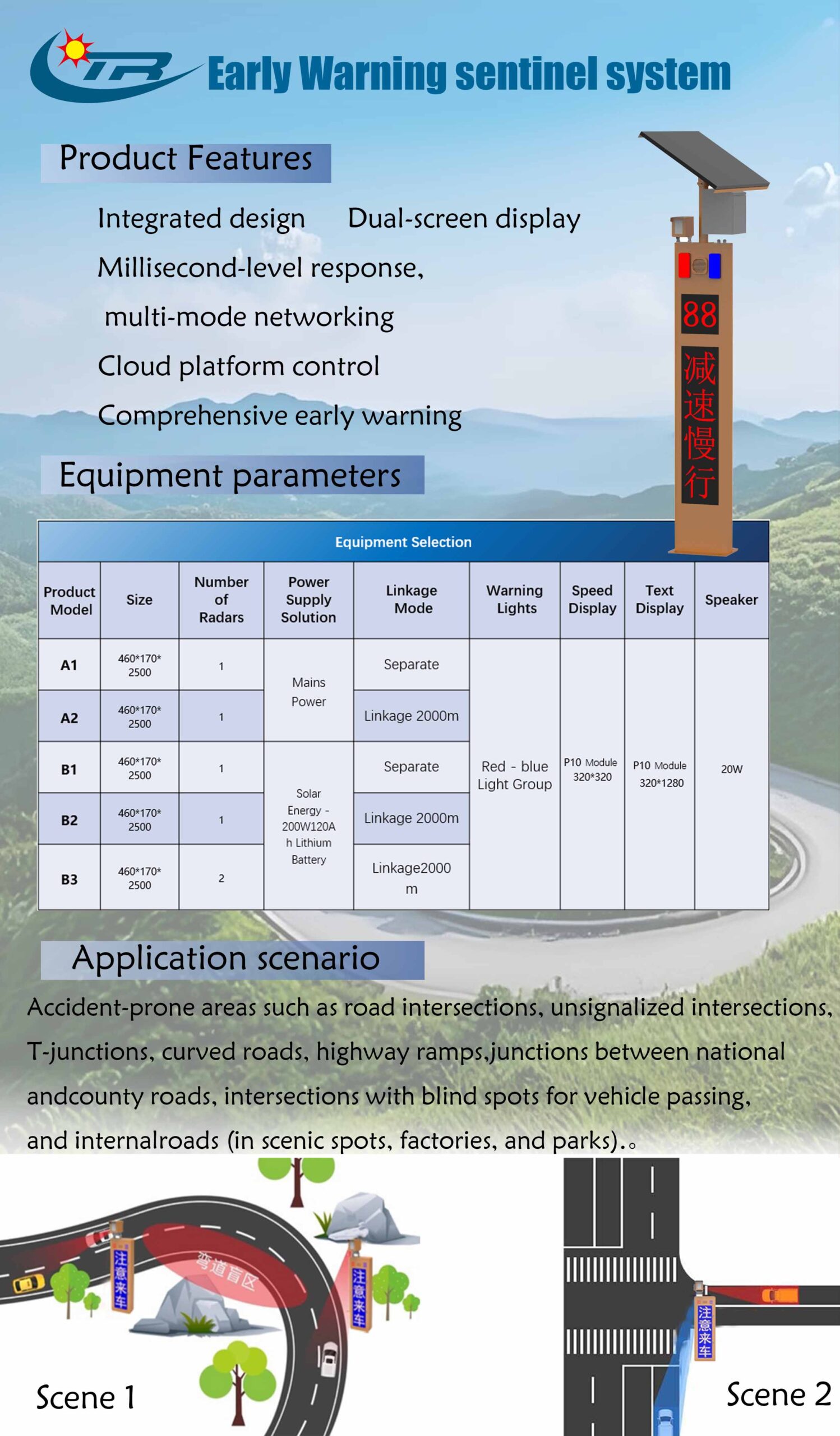

Radar early warning system

Introduction

Have you ever felt uneasy while driving in a curve due to complex road conditions or blind spots? The innovative product of intelligent transportation – the Radar early warning system – might be able to solve these problems for you.

Main Features

1. Speed measurement distance: 1 < 100 meters.
2. Radar horizontal angle: < ±18°, vertical angle: < ±45°.
3. Speed measurement range: 1~199 km/h.
4. Powered by a 12V/220v  control system.
5. Equipped with power management functionality.

Performance Parameters

1. DC /AC input voltage: DC 12V./220V
2. Input DC power consumption: < 3.6W.
3. Ambient temperature: -30℃ ~ +70℃.
4. Relative operating humidity: 45~95%.
5. Storage humidity: 45~60%.
6. Insulation resistance: ≥10MΩ.
7. Dimensions: Customization.
8. Product weight: Customization .

Standards and References

1. GBT 14887-2011 Road traffic signal lights.
2. GBT 19064-2003 Solar photovoltaic power system technical conditions and test methods.
3. GBT 22473-2008 Storage lead-acid batteries.
4. GB 5768.2-2022 Road traffic signs and markings Part 2: Road traffic signs.
