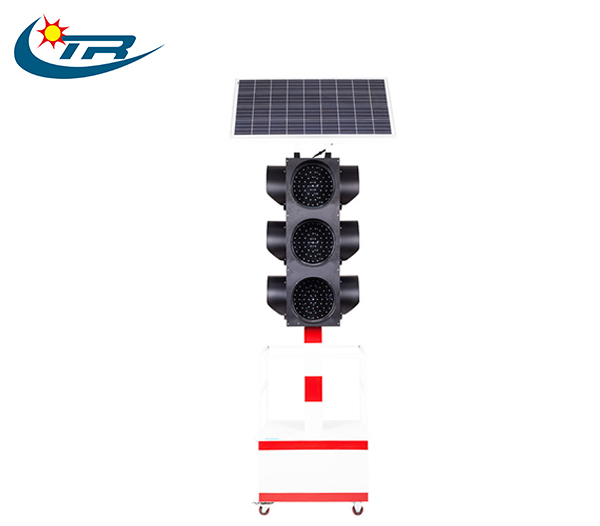

Solar Mobile Traffic Light – “Beetle”
- Completely powered by solar energy, it implements simple and effective control of intersection traffic.
- It adopts manual lifting design and is suitable for various environments.
- The signal machine has a friendly interface and is easier to operate.
- Suitable for temporary command at intersections or long-term use at intersections.
Description
Product Features
The signal light adopts an independent light-emitting unit and an engineering-grade PC light-transmitting cover.
The mobile signal light adopts a lifting design, the lifting chain plate has a self-locking function, the lifting process is stable,safe and reliable.
The signal interface is friendly,the setting is simple,and the battery power is displayed at a glance. The signal machine has its own night light reduction function,which greatly improves the overall battery life of the signal light.
The base is formed by integral stamping of sheet metal,which is novel and beautiful as a whole,and the surface adopts a high-temperature electrostatic powder spraying process,which has a long service life.12-inch large tires can adapt to various road conditions.
Traffic light parameters
（1）Signal light mask size:の300mm
（2）Rated voltage:DC12
（3）Vrated power:6.5W
（4）Working temperature:-30℃—+70℃
（5）Battery life time:6-8 days
（6）Overall dimension:670mm*720*2500mm
（7）Lift height:2500mm-3000mm
（8）Product weight:100kg
（9）Package dimensions(Split packaging)：400mm*500mm*1000mm+700mm*800mm*1000mm
Signal controller parameters
（1）Number of output channels:12 channels
（2）Rated voltage:DC12V/DC24V(adaptive)
（3）rated power:0.5W(no load)
（4）Single load capacity≤3A,total loadcapacity ≤5A
（5）Manual function:Keep phase, Next phase, yellow flashing
（6）Other functions:signal light dimming and energy saving,battery power display,solar charging display,battery charging and discharging protection
