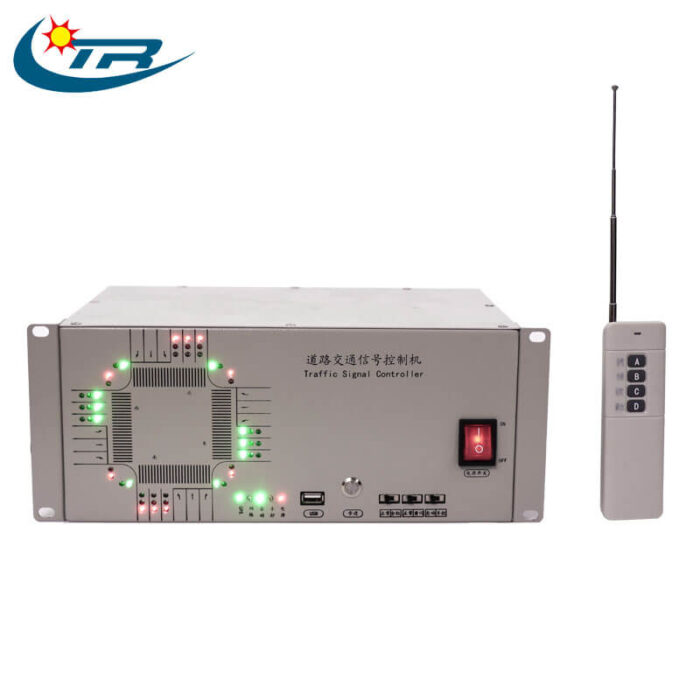

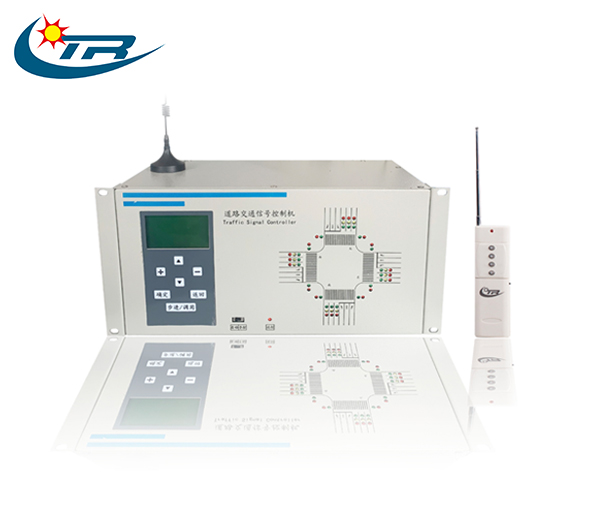

22-output networked traffic signal controller
- Adopting a modular structure,.it has a variety of functional configurationcombinations.
- With cableless green waveand secret service functions.
- Support communication type.and trigger typecountdown.
- With the networking function,the signal machine can becontrolled and parameterized remotely.
Description
Product overview
The 22-output networked traffic signal controller has networking capabilities and can control and parameterize the signal remotely.
Support communication and triggered countdown.
Features
(1)The signal machine supports weekday schemes,weekend schemes, and special day,schemes.
A maximum of 24 plans and 24 time periods can be set,up to 30 special days can be set.
(2)Scalable support for pedestrian button input.
(3)Single-point multi-period fixed-cycle control, single-point adaptive control, greenwave control, secret service control.
(4)Panel manual control, remote control, background remote control: stepping, fixedlight, all red, yellow flashing.
(5)Support fault detection function: signal output detection, green conflict detection, communication fault detection.
(6)It has a Beidou satellite timing system and supports high-precision green wave and equipment positioning management functions.
(7)Support cloud platform networking control, and management through a dedicated mobileAPP.
(8)Support private network control.
Networked traffic signal controller Performance Index
1. 22-way output (18-way motor vehicle light signal output, 4-way pedestrian light signal output)
2.AC input voltage:220(±20%)VAC,50±2Hz
3. Input AC Power Consumption≤10W (traffic light not included)
4. Working temperature:-40℃—+70℃
5. Environment relative humidity:45%-95%
6. The output driver for each way traffic light≥600W, each direction is equipped within independent insurance
7. Overall dimension: (Length*width*height)300mm*194*132mm
