Solar Wireless Traffic Signal Controller
Cost – Effective Design
- The low – power design not only saves energy but also reduces costs. In addition, the controller has a strong anti – interference ability, ensuring stable performance even in challenging electromagnetic environments.
- Solar wireless traffic signal controller host and extension use wireless transmission.
- Suitable for areas without grid coverage or where it is difficult to establish power supply.
- Solar wireless traffic signal controller host and extension use wireless transmission.
- Suitable for areas without grid coverage or where it is difficult to establish power supply.
Description
Product description

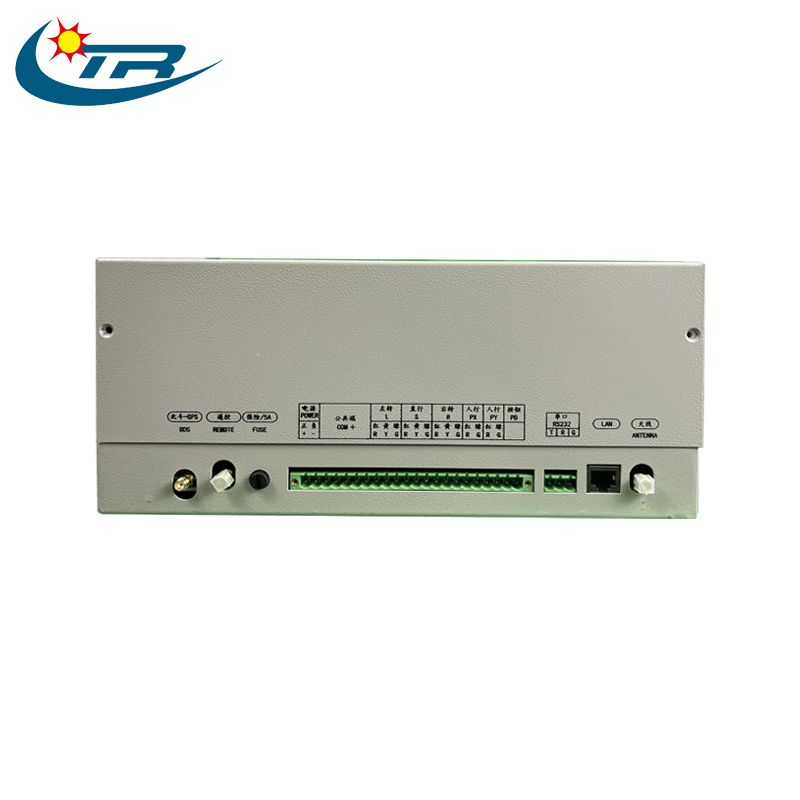

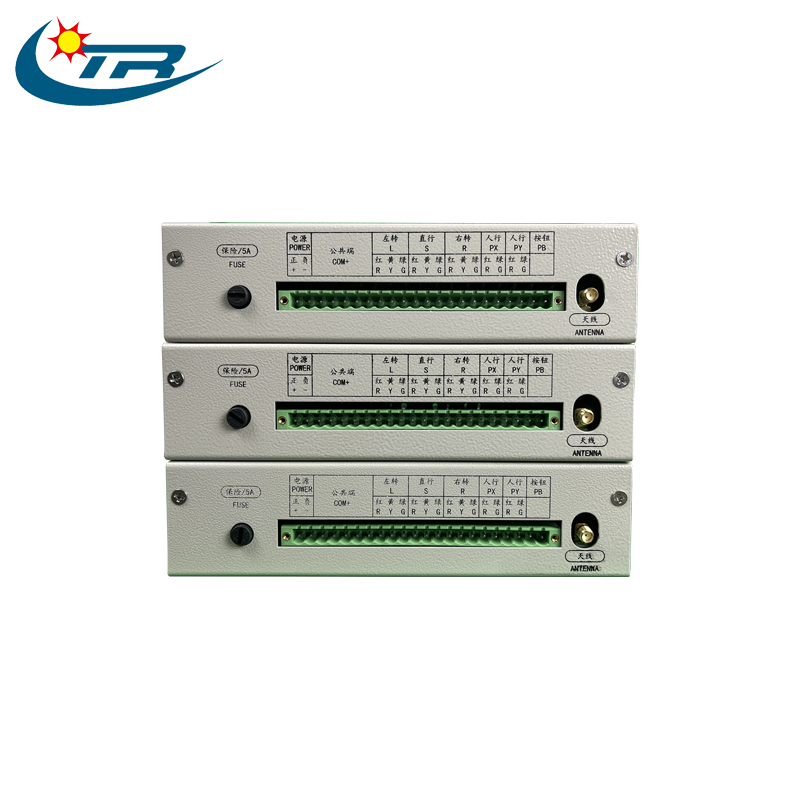

The solar wireless traffic signal controller, consisting of a host and an extension, utilizes wireless transmission. This makes it an ideal choice for areas lacking grid coverage or where establishing a power supply is challenging.
Features
Diverse Plan Support
First and foremost, the signal machine has the capacity to support weekday plans, weekend plans, and special day plans. This adaptability allows for customized traffic control according to different time schedules.
Remote Control via Software
Secondly, you can control the current time and operation plan of the signal through special computer software. This remote control feature provides convenience and flexibility in managing traffic signals.
Pedestrian Button Functionality
Both the host and the extension are equipped with pedestrian buttons. As a result, they can execute the set pedestrian plans, enhancing pedestrian safety and convenience.
Low – Power Consumption Design
The circuit’s low – power consumption design is another advantage. Specifically, it can reduce the configuration requirements of the solar power supply system, which not only saves costs but also makes the system more energy – efficient.
Stable Data Transmission
Moreover, the controller uses 433M dual data transmission modules. This helps improve the stability and safety of the equipment, ensuring reliable communication between the host and the extension.
Networking and Remote Control
With its networking function, you can control the signal and set parameters remotely. This feature is especially useful for traffic management centers to monitor and adjust traffic flow in real – time.
Performance
| Parameter | Specification |
| Output Ports | 13 output ports, providing sufficient connectivity for various traffic signal components |
| Voltage Range | DC 9V to DC 39V, wide voltage range compatible with multiple power sources |
| Power Consumption | Host ≤ 0.8W; Extension ≤ 0.6W, low-power energy-efficient design |
| Temperature Range | -40℃ to +70℃, suitable for diverse climates from extreme cold to hot regions |
| Humidity Tolerance | 20% to 95% RH, stable operation under various humidity conditions |
| Load Capacity | Single load ≤ 3A; Total load per unit < 5A, ensuring safe operation of connected devices |
| Size | Main unit: 300mm × 200mm × 120mm; Extension: 200mm × 130mm × 50mm, compact design for easy installation |
