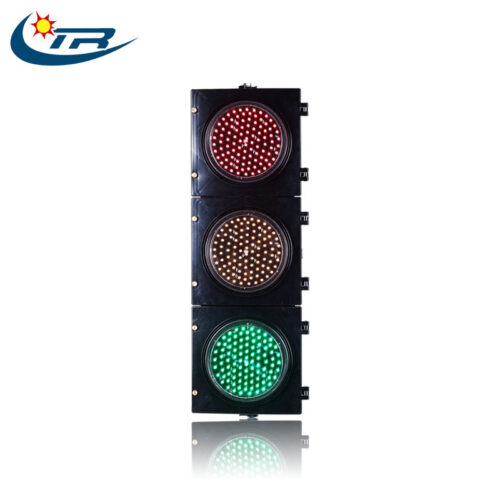

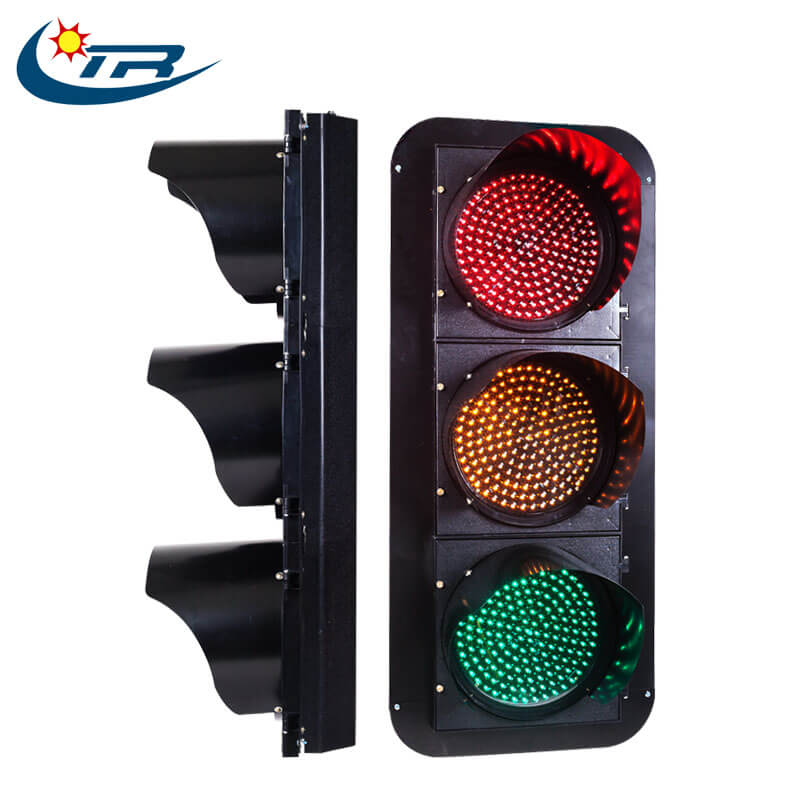

300mm road traffic signal light
- High intensity LED light source with low energy consumption.
- 5mm LED (DIP)
- Long life cycle – more than 50,000 working hours.
- Highly durable polycarbonate housing, UV-light resistant.
- Rational design for easy installation and maintenance.
- Easy click-in open system or access using of wingnuts.
- Fixation system with both PC and aluminum mounting brackets.
Description
Product overview
A motor vehicle lane signal light independently produced by VTR.
- ultra-high brightness LED light source with high brightness, good clarity and a visual distance of more than 600 meters.
- Smart and rational designed to be easy to install and maintain.
Performance
Size: φ300mm
Standard: GB14887-2011
Material: PC/cast aluminum
Housing dustproof and waterproof rating: IP54
LED type: (φ5mm)
LED light angle: 30º
LED luminous intensity: red 4500-5500mcd, yellow 4000-5000mcd, green 9000-10500mcd
LED chromaticity values: red 620-625nm, yellow 589-591nm, green 503-505nm
Working hour: more than 50,000 hours
Rated voltage: 12V/24V, DC12/DC24 ( ±20%), AC220 50HZ(±2HZ)
Working temperature: -40ºС～80ºС
Working humidity: ≤95%
300mm road traffic signal light Technical Parameters
| Product Model | LED quantity (pcs) |
Rated voltage & power | Product size | Package | ||||||
| R | Y | D | Rated voltage (V) |
Maximum power (W) |
Average power (W) |
PC (mm) |
Cast Aluminum (mm) |
Packing Size (mm) |
Pcs | |
| JD3003-131S/L | 96 | 96 | 96 | DC12 | 2.3 | 1.84 | 1110*360*133 | 1068*350*124 | 1180*410*338 | 2 |
| JD3003-231S/L | 96 | 96 | 96 | DC24 | 2.3 | 1.84 | 2 | |||
| JD3003-431S/L | 96 | 96 | 96 | AC220 | 5.76 | 4.61 | 2 | |||
