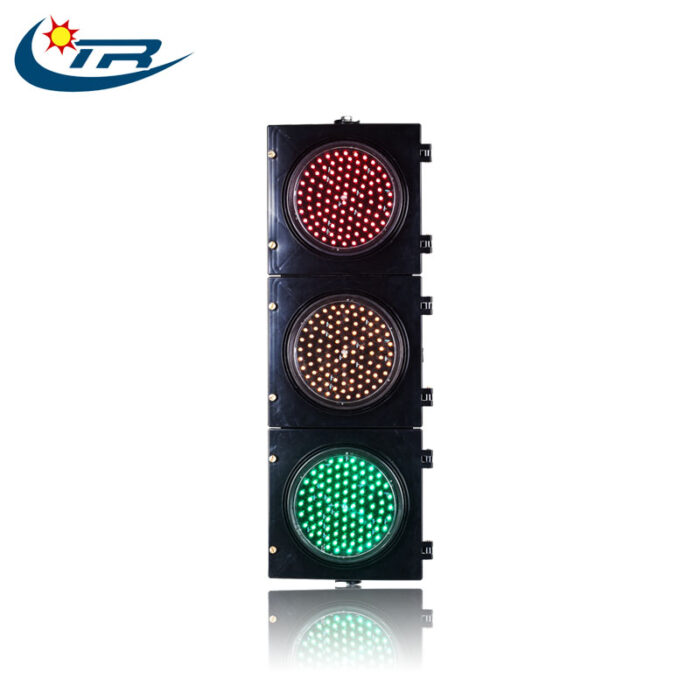

200mm Clear Lens RYG LED Traffic Light

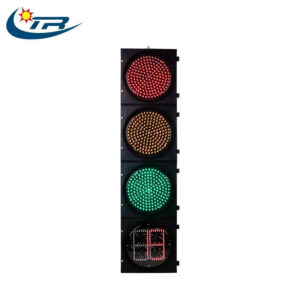

- The signal light display of 2 units, 3 units or 4 units can be customized;

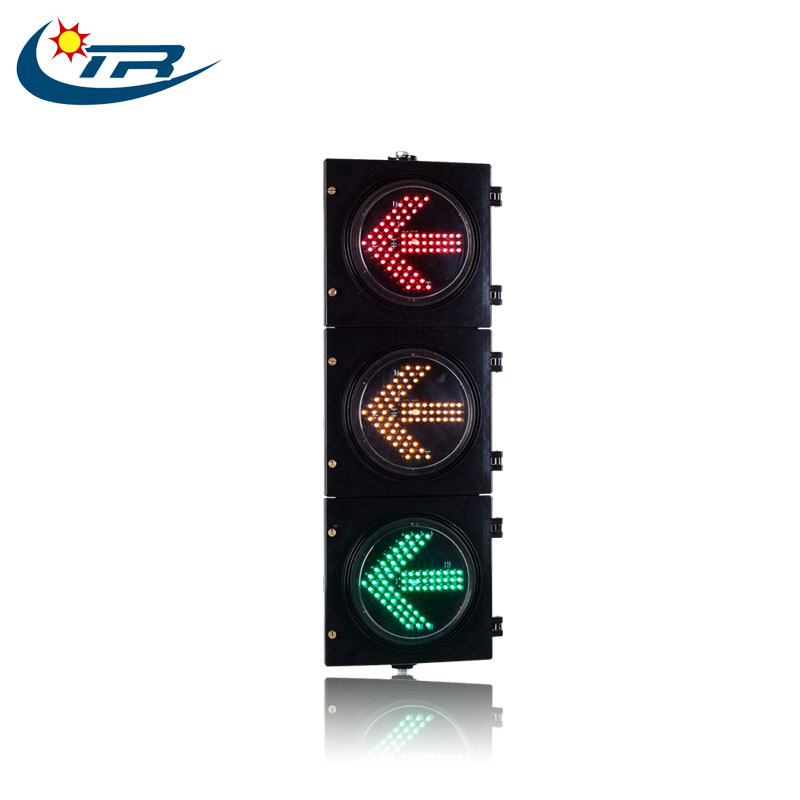

- You can choose full screen, direction indication and other patterns;

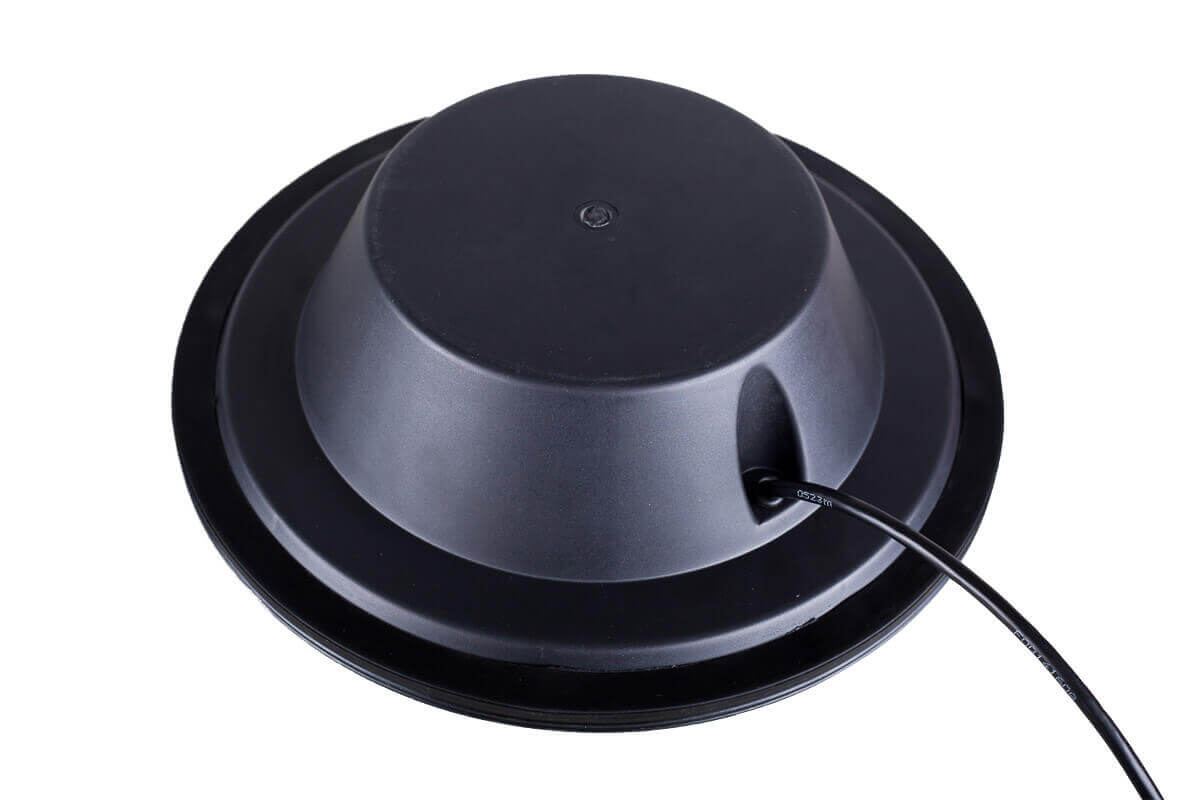

- The back of the lamp body is designed with a quick installation structure
- The lamp shell is made of aluminum alloy casting
Description
Product Overview
Traffic lights display in a single color, with uniform and beautiful chromaticity. If you choose traffic lights, you must choose a regular traffic light supplier.
The lamp shell is made of aluminum alloy casting, which has strong humidity and heat resistance, high temperature resistance and low temperature resistance.
Performance indicators
Luminous surface size: φ200mm
Implementation standard: GB14887-2011
Material: PC
Dustproof and waterproof grade: IP54

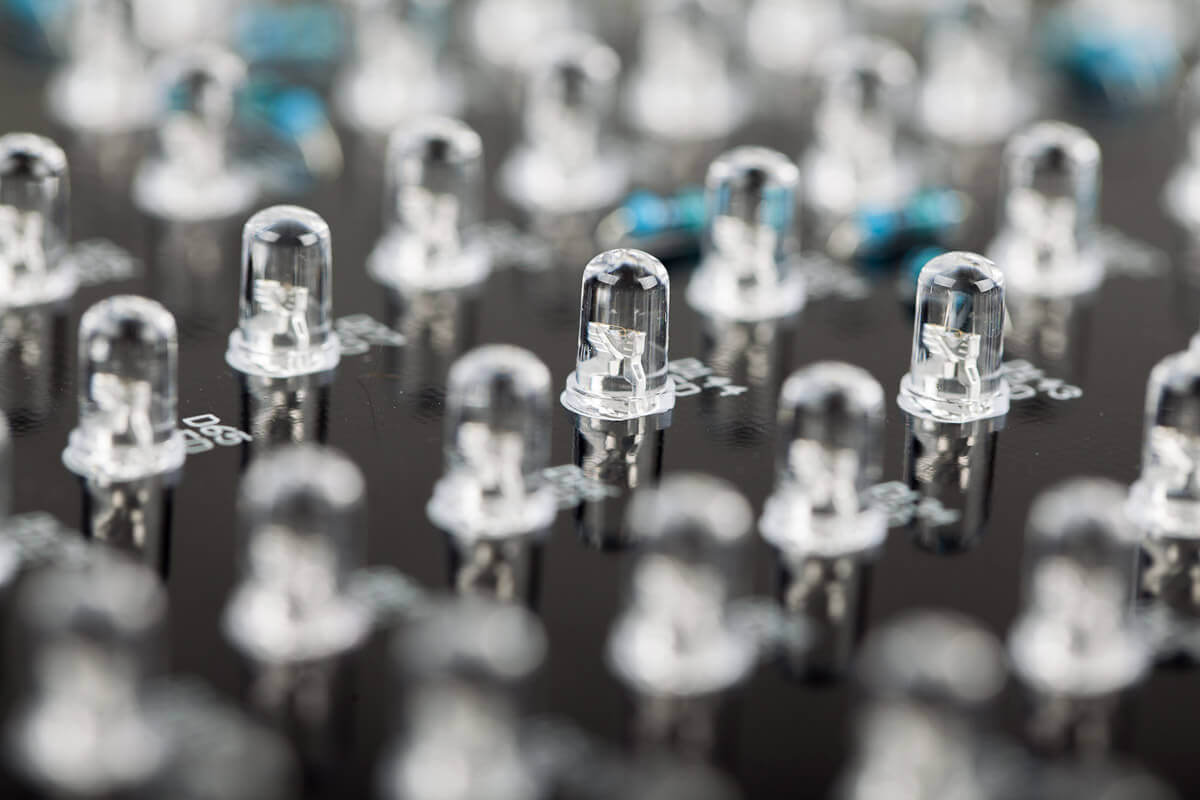

Light source type: LED (φ5mm)
LED light angle: 30o
LED luminous intensity: red 4500-5500mcd, yellow 4000-5000mcd, green 9000-10500mcd
LED chromaticity values: red 620-625nm, yellow 589-591nm, green 503-505nm
LED life: more than 50,000 hours
Rated voltage: Solar signal light: DC12/DC24
Mains signal light: AC220 50HZ
Voltage range: ±20%
Frequency range (applicable to mains signal lights): ±2HZ
Working environment temperature: -40oС～80oС
Working environment humidity: ≤95%
Wiring method: 12V/24V signal lights are common anodes
200mm Road Traffic Signal Light Technical Parameters
| Product Model | LED quantity (pcs) |
Rated voltage & power | Product size | Package | ||||||
| R | Y | D | Rated voltage (V) |
Maximum power (W) |
Average power (W) |
PC (mm) |
Packing Size (mm) |
Pcs | ||
| JD2003-131S | 59 | 59 | 59 | DC12 | 1.42 | 1.13 | 774*262*106 | 820*290*285 | 2 | |
| JD2003-231S | 59 | 59 | 59 | DC24 | 1.42 | 1.13 | 774*262*106 | 820*290*285 | 2 | |
| JD2003-431S | 100 | 100 | 100 | AC220 | 6 | 4.8 | 774*262*106 | 820*290*285 | 2 | |
