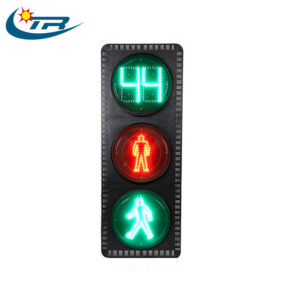

300mm Pedestrian Traffic Light with Countdown Timer

High – Brightness LED Source：It offers high clarity and a 600 – plus – meter visual range, ensuring clear signal identification.
Integrated Shell Design：Without separate decorative edges, it enables high – efficiency assembly.
Tool – Free Visor：The visor comes with a clasp, allowing tool – free installation.
Customizable Light – Emitting Unit：With an independent light – emitting unit, the traffic light can form various patterns as per international needs.
A hollow design around the traffic signal light reduces wind resistance and eases requirements for structural connectors.

Get A Free Quote Now

Description

For privacy reasons YouTube needs your permission to be loaded.

Performance

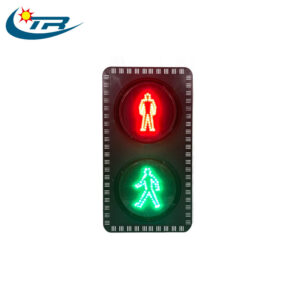

300mm pedestrian traffic signal light

Standard: GB14887-2011
Material: PC
Housing dust proof and waterproof rating: IP54
LED type: (φ5mm)
LED light angle: 30º
LED luminous intensity: red 4500-5500mcd, yellow 4000-5000mcd, green 9000-10500mcd
LED chromaticity values: red 620-625nm, yellow 589-591nm, green 503-505nm
Working hour: more than 100,000 hours
Rated voltage: 12V/24V, DC12/DC24 ( ±20%), AC220 50HZ(±2HZ)
Working temperature: -40ºС～80ºС
Working humidity: ≤95%

300mm Pedestrian Traffic Light with Countdown Timer

300mm pedestrian traffic signal light Technical Parameters

5mm LED (DIP)
Long life cycle – more than 100,000 working hours.
Highly durable polycarbonate housing, UV-light resistant.
Rational design for easy installation and maintenance.
Easy click-in open system or access using of wingnuts.
Fixation system with both PC and aluminum mounting brackets.

Product Model	LED quantity(pcs)			Rated voltage & power			Product size		Package
Product Model	R	Y	D	Rated voltage (V)	Maximum power (W)	Average power (W)	PC(mm)	Cast Aluminum (mm)	Packing Size (mm)	Pcs
JD3003-131S/L	96	96	96	DC12	2.3	1.84	1110360133	1068350124	1180410338	2
JD3003-231S/L	96	96	96	DC24	2.3	1.84	1110360133	1068350124	1180410338	2
JD3003-431S/L	96	96	96	AC220	5.76	4.61				2
