Description

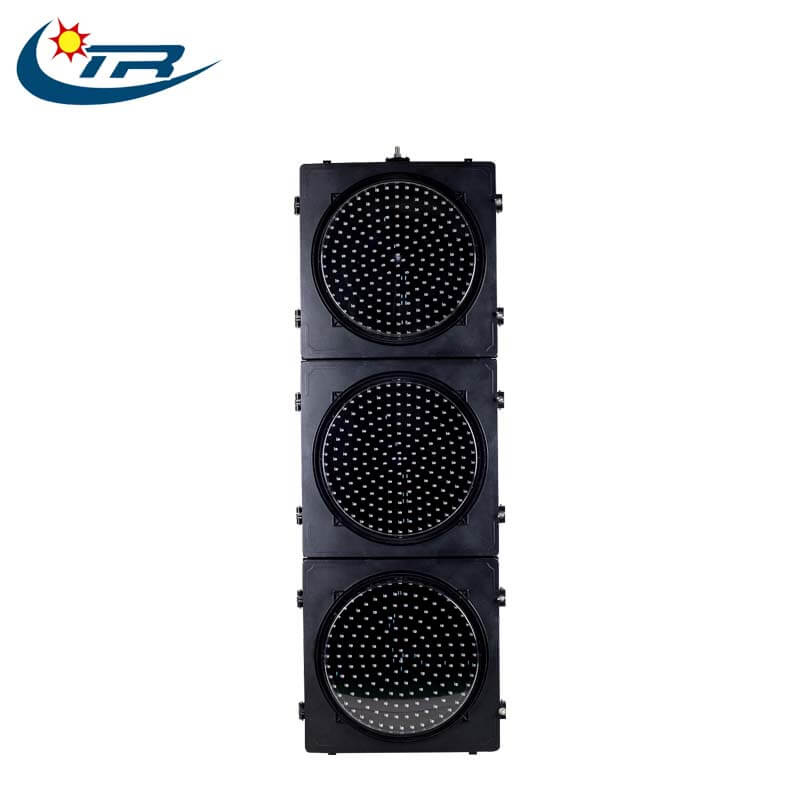

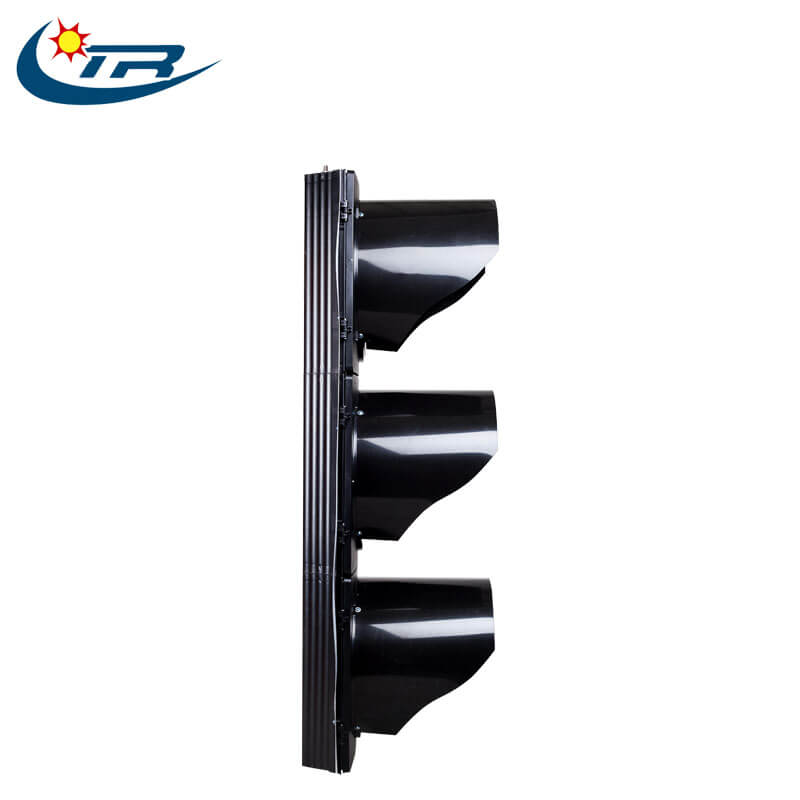

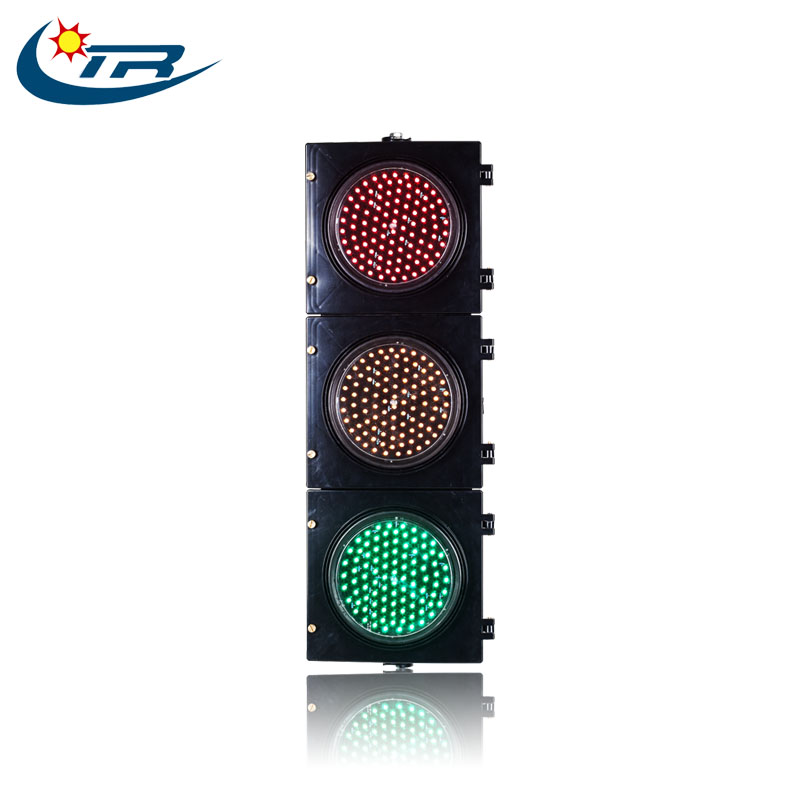

3-link motor vehicle signal light with bright colors and easy identification.
Performance
Size: φ400mm
Standard: GB14887-2011
Material: PC/cast aluminum
Dustproof and waterproof grade: IP54
LED type: φ5mm
LED light angle: 30º
LED luminous intensity: red 4500-5500mcd, yellow 4000-5000mcd, green 9000-10500mcd
LED chromaticity values: red 620-625nm, yellow 589-591nm, green 503-505nm
Working hour: more than 50,000 hours
Rated voltage: DC12/DC24(±20%), AC220 50HZ(±2HZ)
Working temperature: -40ºС～80ºС
Working humidity: ≤95%
Wiring method: 12V/24V signal lights are common anodes
Technical Parameters
| Product Model | LED quantity (pcs) |
Rated voltage & power | Product size | Package | ||||||
| R | Y | D | Rated voltage (V) |
Maximum power (W) |
Average power (W) |
PC (mm) |
Cast Aluminum (mm) |
Packing Size (mm) |
Pcs | |
| JD4003-131S/L | 90 | 90 | 90 | DC12 | 2.16 | 1.73 | 1416*448*157 | 1380*428*128 | 1465*525*360 | 1 |
| JD4003-231S/L | 120 | 120 | 102 | DC24 | 2.45 | 2.09 | 1416*448*157 | 1380*428*128 | 1465*525*360 | 1 |
| JD4003-431S/L | 200 | 200 | 156 | AC220 | 9.36 | 8.28 | 1416*448*157 | 1380*428*128 | 1465*525*360 | 1 |
