Description
Product Overview

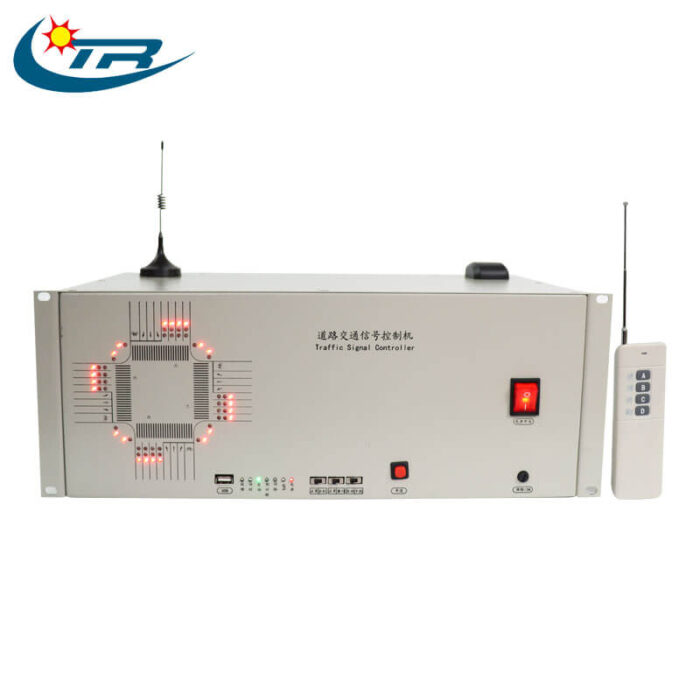

44-output networked traffic signal controller implements 36-way motor vehicle light signal output, 8-way pedestrian light signal output.
Features
(1) The signal machine supports weekday schemes, weekend schemes, and special dayschemes.
A maximum of 24 plans and 24 time periods can be set, up to 30 special days can be set.
(2)Scalable support for pedestrian button input.
(3) Single-point multi-period fixed-cycle control, single-point adaptive control, greenwave control, secret service control.
(4) Panel manual control, remote control, background remote control: stepping, fixedlight, all red, yellow flashing.
(5) Support fault detection function: signal output detection, green conflict detection, communication fault detection.
(6) It has a Beidou satellite timing system and supports high-precision green wave and equipment positioning management functions.
(7) Support cloud platform networking control, and management through a dedicated mobileAPP.
(8)Support private network control.
networked traffic signal controller Performance
(1) 44-output, (36-output motor vehicle light signal output, 8-output pedestrian light signal output)
(2)AC input voltage:220(±20%)VAC, 50±2Hz
(3) Input AC Power Consumption:≤10W (traffic light not included)
(4) Working temperature:-40℃—+70℃
(5) Environment relative humidity:45%-95%
(6) The output driver for each way traffic light≥600W, each direction is equipped within dependent insurance
(7) Overall dimension: 300mm(L)*194mm(W)*132mm(H)
