Internally Luminous Pedestrian Crossing Signs

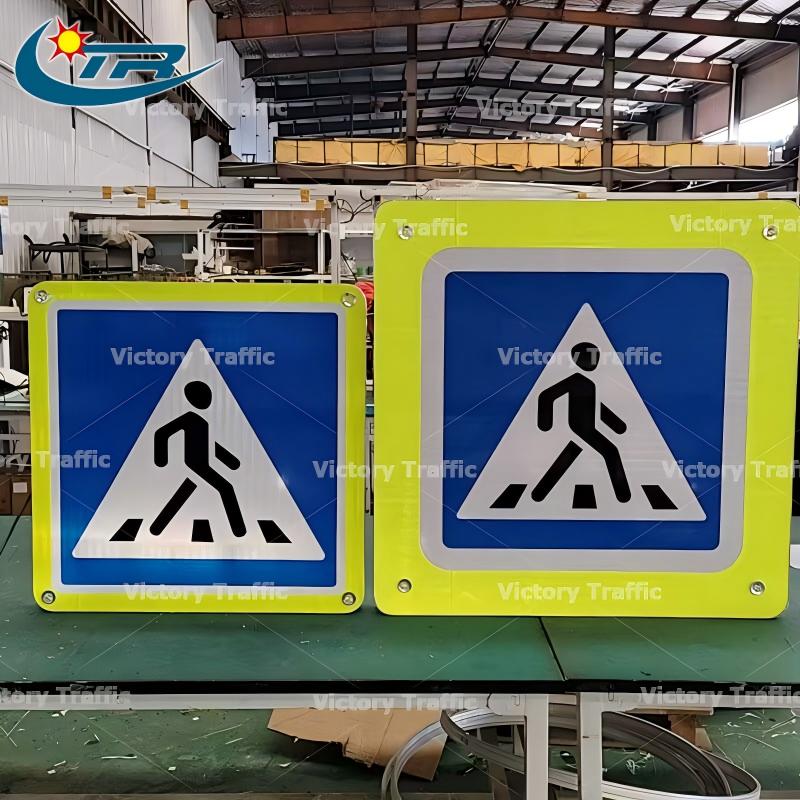

The Sign board is made of aluminum alloy plates, aluminum alloy profiles, etc. through welding/riveting. The overall thickness of the semi-transparent active luminous sign is ≤60mm.Size：700×700 mm & 900×900 mm. Panel material: Aluminum plate + PC composite material
Description

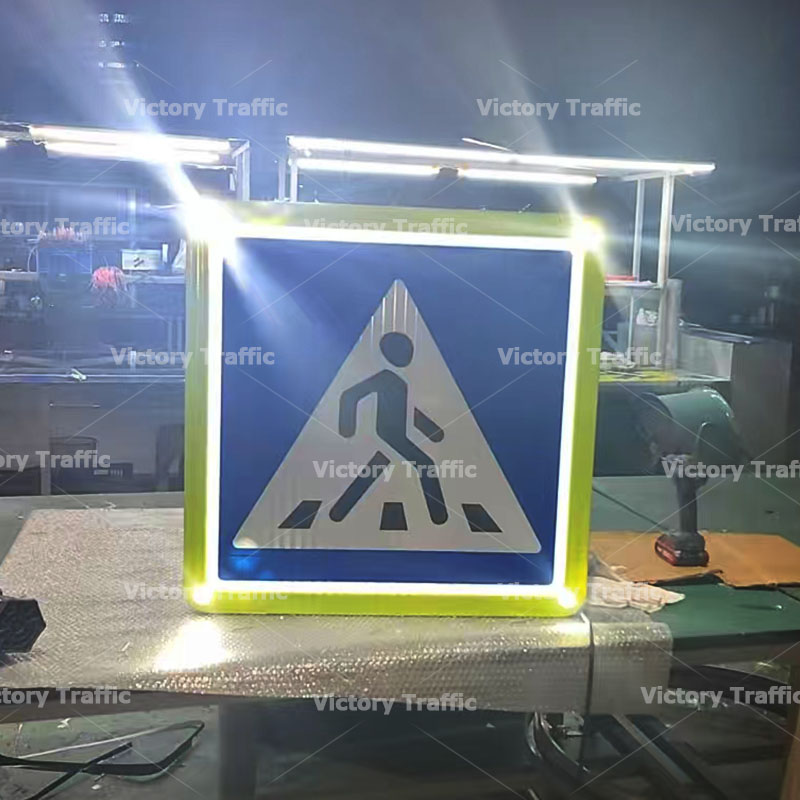

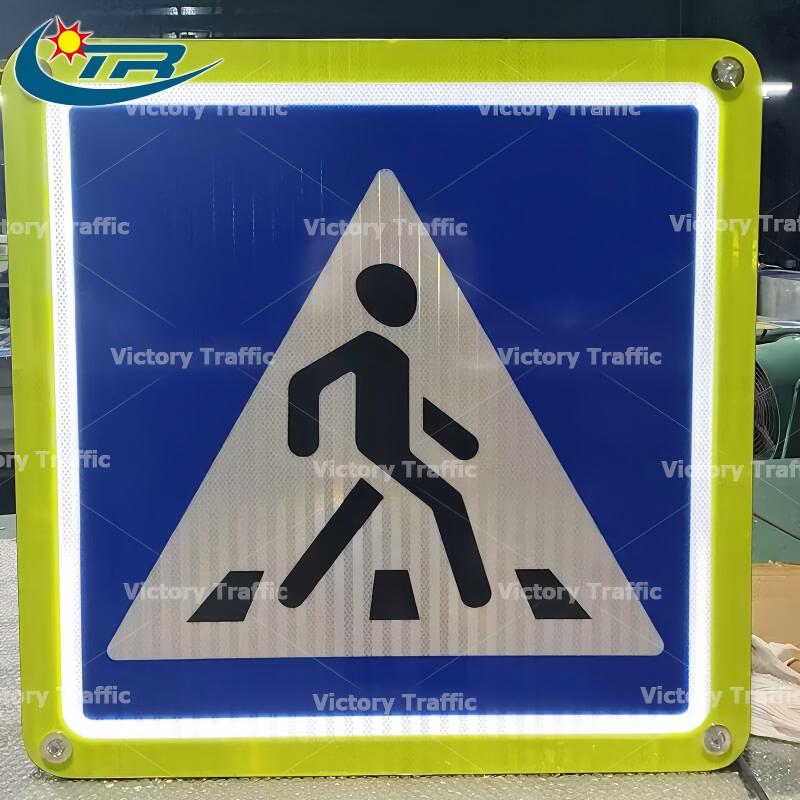

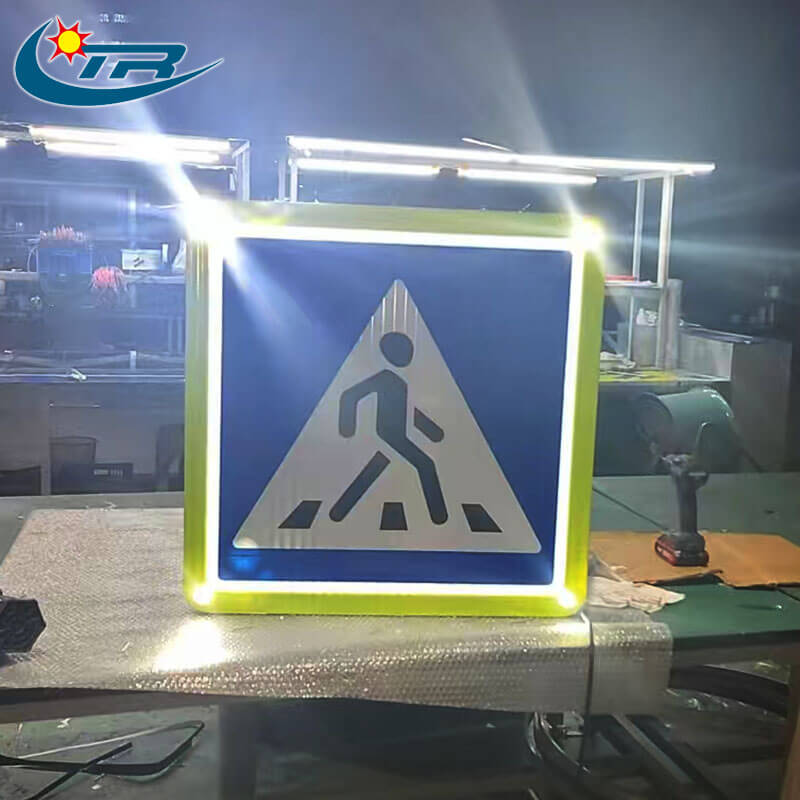

Square Internally Luminous Pedestrian Crossing Sign
Our square self‑luminous pedestrian crossing sign features a fluorescent yellow anti‑collision frame and blue panel with triangular pedestrian zebra‑crossing marks. LED translucent strips line the full border, with mounting bolts at four corners and side dot‑matrix LED warning lights. Accordingly, it delivers crisp reflective visibility by day and powerful active illumination after dark.
Day‑Night Visibility
High‑performance reflective film ensures clear daytime visibility with zero power input. Meanwhile at night, full‑panel LED backlight works together with four‑corner flashing lights for dual‑layer warning. Most importantly, it warns distant drivers even on unlit rural roads. Furthermore, this dual‑mode design reduces unnecessary power draw.
Material & Environmental Resistance
Constructed with aluminum base plates and robust PC light panels. For one thing, the assembly resists UV radiation and extreme temperature shifts to prevent yellowing and cracking. On top of that, its IP54 dust‑waterproof rating guarantees stable performance amid rain, snow and sandstorms. In addition, durable materials greatly cut long‑term maintenance work.

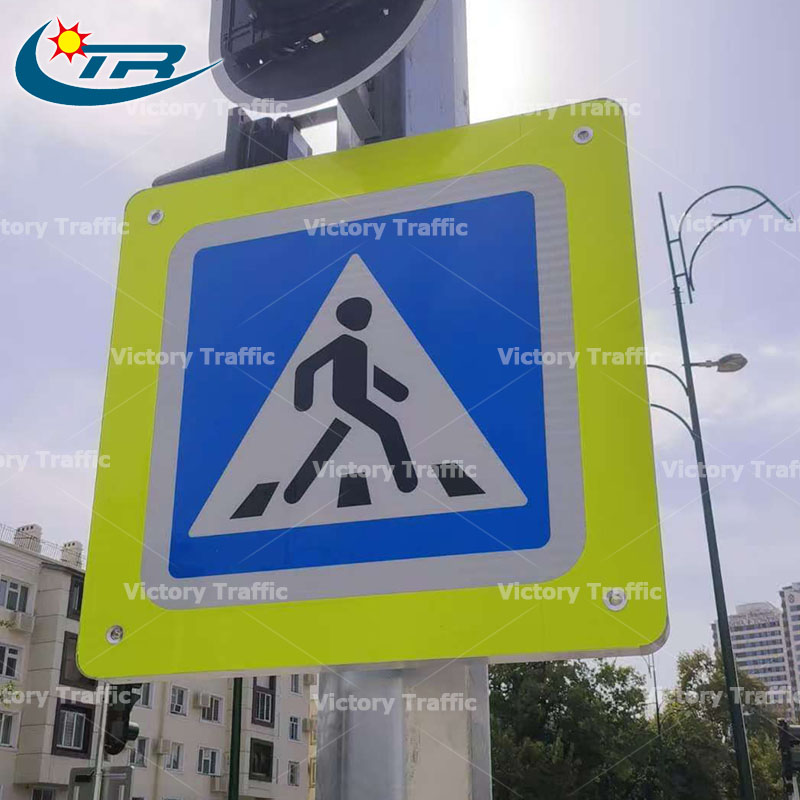

Installation Scenarios
- Urban main‑road crosswalks
- School and residential gateways
- Scenic zones and factory park roads
- Dim suburban junctions
- Rural highway zebra crossings
- On‑site factory pedestrian paths
Besides, corner bolts support simple pole‑mount setup. Therefore, field technicians can complete installation rapidly. What’s more, side LED lights add extra peripheral traffic reminders.
| Category | Item | Specification | Technical Parameter / Details |
| Product Overview | Product Name | — | Internally Luminous Pedestrian Crossing Sign |
| Size | 700×700 mm & 900×900 mm | — | |
| Overall Thickness | ≤ 60 mm | Semi-transparent active luminous sign | |
| Construction | — | Aluminum alloy plate + aluminum alloy profile, welded/riveted assembly | |
| Luminous Form | — | Semi-transparent panel with built-in directional front-projection light source (panel internally lit, key information clearly visible) + point light source (four LED flashing lights around perimeter) | |
| Display Content | — | Pedestrian Left / Pedestrian Right | |
| Installation | — | Horizontal & vertical slide M12 with complete clamp; U-shaped chute supports both horizontal and vertical mounting | |
| Material Specifications | Panel Material | — | Aluminum plate + PC composite; high strength, weather resistance, excellent surface flatness, uniform light output |
| Reflective Film | Class IV transparent reflective film on surface | reflective film on surfaceSuperior light transmittance and retroreflective performance | |
| Electrical & Optical Parameters | Light Source | — | Superior light transmittance and retroreflective performance |
| Operating Voltage | — | Signage: DC 12V; Power supply: AC 220V → DC 12V | |
| Operating Temperature | -20℃ ~ +50℃ | — | |
| Dust & Water Resistance | IP54 | Stable outdoor operation | |
| Viewing Distance | — | Nighttime dynamic vision ≥ 210 m; static ≥ 250 m | |
| Control Box & Accessories | Control Box | ABS material | Includes 36W power supply ×1, photosensitive controller ×1, mainboard ×1, and auxiliary materials; installation accessories included |

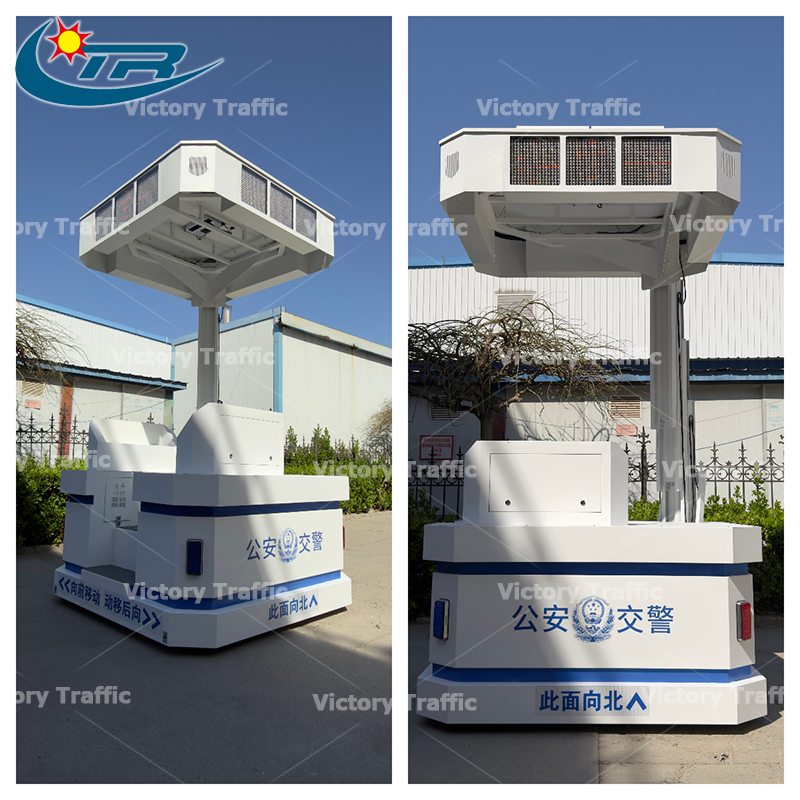

Mobile Intelligent Traffic Command Platform
