Description
For privacy reasons YouTube needs your permission to be loaded.
I AcceptFunction

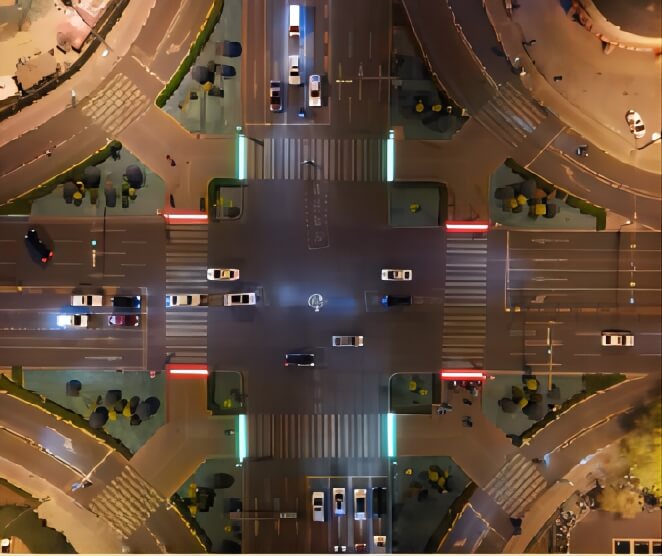

Used in pedestrian waiting areas, the light color is synchronized with the pedestrian signal lights
Technical data

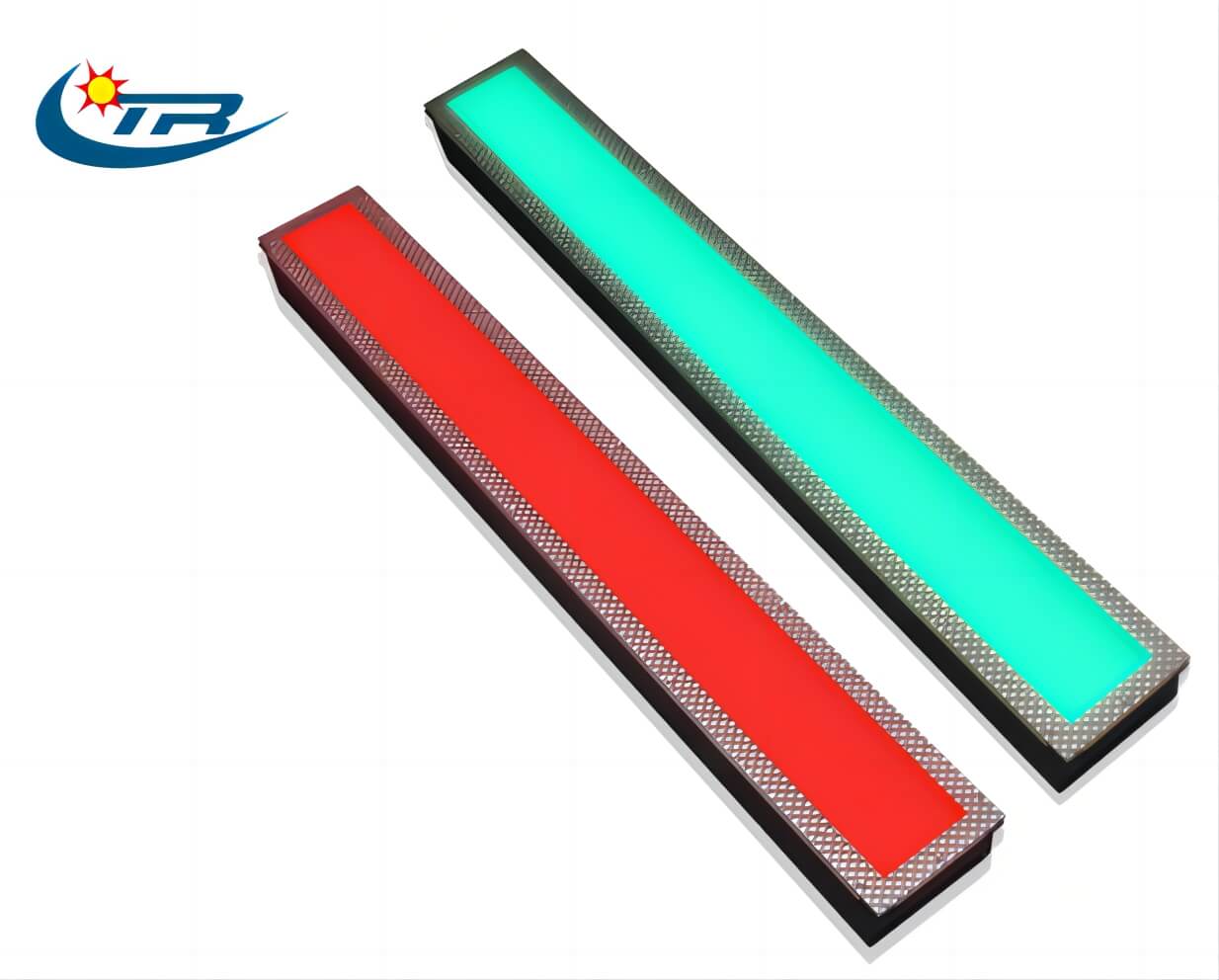

Dimensions of underground signal lights: length 1050mm*width 130mm*height 88mm,
Special waterproof power supply 230mm*120mm*60mm.
Signal light red light power <45W, brightness>9601m;
Green light power <45W, brightness>10401m.
The working voltage is DC36V, the working power is <40W, and it can be reduced to about 12W at night.
Protection grade IP67. Compressive strength: >20MPa.
The insulation resistance between live parts and the shell is greater than 500MΩ.
Equipment list
| Name | Number | |
Pedestrian Crosswalk Signals In-Ground Traffic Light |
set | Configure according to the required quantity, the length of each set of signal lights is 1.05m |
| Dedicated waterproof power supply | set | Every 3 underground signal lights are equipped with 1 power supply |
| Distribution box (1080) | Pcs | Install circuit breakers, relays, power supplies and other equipment. To facilitate wiring, use a |
