Pedestrian Crosswalk Signals In-ground RG LED Brick Light

Color: Red; Green
LED Composition: φ5 round tube
Electrostatic spraying; Sheet metal chassis
Uniform brightness
Fully sealed interior with excellent waterproof rating.
Application Areas: Urban traffic signal systems.
High – intensity LED light source with low energy consumption.
High – power LED (DIP).
Modular design – easy installation and maintenance.
Optional power adapter, can be directly integrated with the signal controller.

Description

Function for Safety

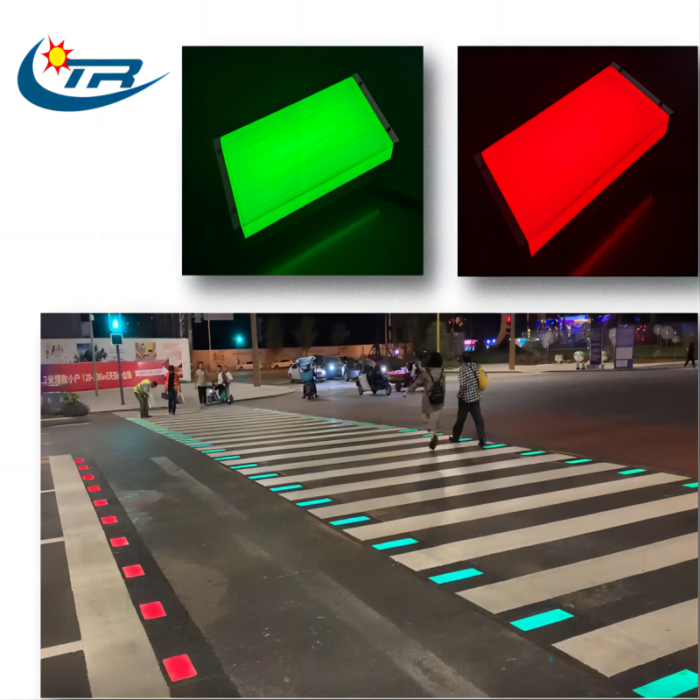

The In – ground RG LED Brick Light is key for pedestrian crosswalks. Installed at ground – level, its red and green lights clearly signal stop or go. This visual aid, especially useful in low – light, reduces crosswalk accident risks.

Durable Design

Shaped like bricks, these lights endure heavy foot traffic and diverse weather. LED tech ensures energy – efficiency and long – lasting brightness. Their in – ground fit is unobtrusive to pedestrian movement.

Traffic System Integration

They integrate with existing traffic signals, mirroring overhead stop – go messages. In smart setups, they can adapt to real – time traffic, like changing brightness near speeding vehicles.

Aesthetic Plus

Apart from function, In – ground RG LED Brick Lights enhance crosswalk aesthetics. Their illuminated patterns make crosswalks more appealing, improving the urban walking environment.

Name	Mold Model	Wavelength	Luminance	Quantity
Red – colored chip	chip	625 ± 2nm	4500mcd	66
Green – colored chip	chip	525 ± 2nm	10000mcd	66
LED Combination	φ5 Perfect Round Tube
Single Brick Load – Bearing Capacity	> 50 tons
Floor Tile Size	50013055mm
Floor Tile Blank Size	58615864mm，Cold – rolled Plate Thickness: 5mm
Bottom Shell Size	600230100mm， Cold – rolled Plate, Thickness: 5mm
Floor Tile Shell Material	Polymer Composite Material
Bottom Shell Material	Electrostatic spraying, sheet metal chassis
Rated Power	R: 3.84W, G: 4.8W
Operating Voltage	DC 24V
Average Luminous Intensity	≥3000cd/m³, Glare – free, High Brightness
Visual Range	1 – 100 million
Operating Temperature	-40℃~+95℃
Relative Humidity	10%~95%
Insulation Index	Greater than 1500V
Earth Current	≤3mA
Mean Time Between Failures (MTBF)	≥10000 hours
Service Life	≥100,000 hours
Uniformity	Uniform Brightness
Protection Level	IP68
Installation Method	Underground

Intersection Control Box

Name	Comment
Operating Temperature	-40℃~+95℃
Relative Humidity	10%~95%
Input Voltage	AC 85 – 265V, 50/60Hz
Output Voltage	DC 24V
Output Current	15A
Housing Dimensions	1200 * 500 * 374 mm
Service Life	≥100,000 hours
Protection Level	IP65
Output Power	350W
Main Function	High – voltage input to low – voltage output. Odd – numbered floor tiles and even – numbered floor tiles can emit light alternately.
Applicable Sites	School intersections, intersections with heavy traffic flow
