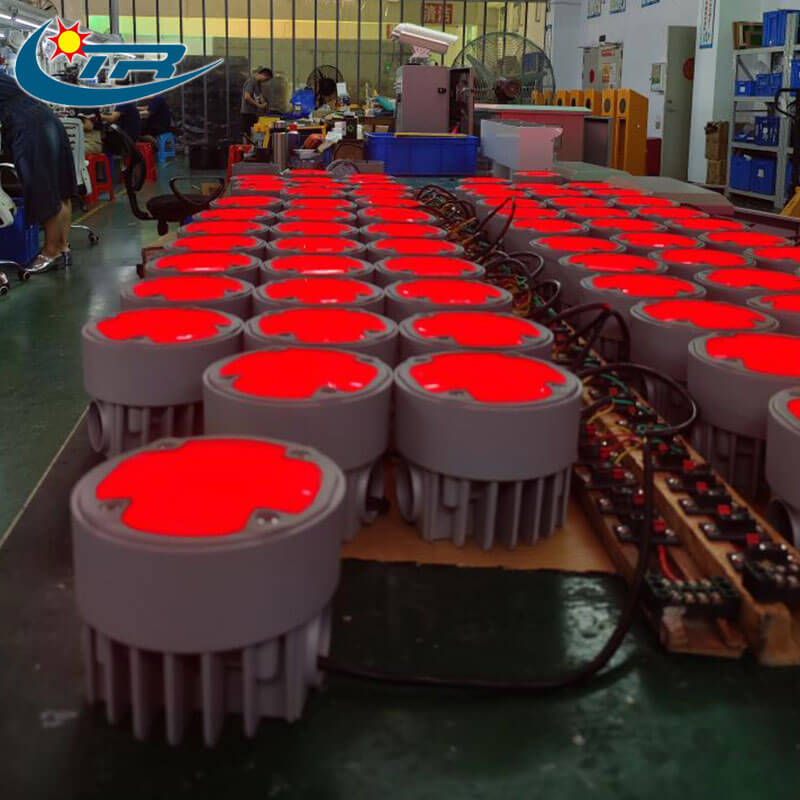

The Cast Aluminum Round LED Road Studs
Specifications
Dimensions
148*148*114mm (with embedded base)
Power Supply : DC24V (±10%)
Power Consumption <8VA
LED Type: 5mm Round LEDs (21 per stud)
LED Colors :Red/Green/Yellow/White (customizable)
Brightness : Red: 4,800–6,800 mcd; Green: 8,500–10,500 mcd; White: 16,000 mcd
Viewing Angle ≥120°
Visibility Range ≥300 Meters
Operating Temp. -30°C to +70°C
Crush Resistance ≥30 Tons
Protection Rating ：IP68
Weight :3.5 kg
LEDs Lifespan >80,000 Hours
Description
Function
The Cast Aluminum Round LED Road Studs enhance road safety by providing clear visual cues for drivers and pedestrians. Designed to sync with traffic signals, the studs glow red/green to match crossing phases or yellow/white for hazard warnings. Ideal for crosswalks, intersections, and constructionzones, they reduce accidents by 30%* and integrate seamlessly with smart city systems.
Technical data
Multi-Color Alerts: Red/Green/Yellow/White LED options.
Extreme Durability: Cast Aluminum + PC housing withstands 30-ton loads.
All-Weather Ready: IP68 waterproof, -30°C to +70°C operation.
High Brightness: 16,000 mcd LEDs for 300m visibility.
Signal Sync: Integrates with traffic lights or smart systems.
Wide Coverage: 120° viewing angle ensures no blind spots.
Low Power: <8VA consumption, DC24V compatible.
LED Long Lifespan: 80,000+ hours (10+ years).
Easy Installation: lamp detachable from embedded base for fast deployment.
Versatile Use: Crosswalks, stop lines, hazard .
Specifications
| Dimensions | 148*148*114mm (with embedded base) |
| Power Supply : | DC24V (±10%) |
| Power Consumption | <8VA |
| LED Type | 5mm Round LEDs (21 per stud) |
| LED Colors | Red/Green/Yellow/White (customizable) |
| Brightness | Red: 4,800–6,800 mcd; Green: 8,500–10,500 mcd; White: 16,000 mcd |
| Viewing Angle | ≥120° |
