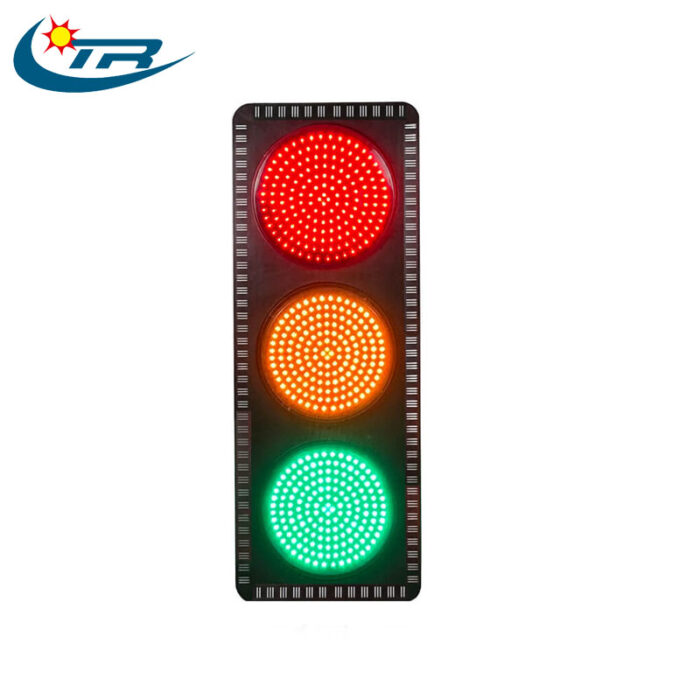

300mm traffic signal light

Product overview

A motor vehicle lane signal light Light which easy installation produced by VTR.

ultra-high brightness LED light source with high brightness, good clarity and a visual distance of more than 600 meters.
The shell adopts integrated molding design, without installing decorative edges separately, and the assembly efficiency is high.
The visoris fitted with clasp and does not require any tools.
The traffic light shell is designed with independent light-emitting unit, which can be made into various patterns according to international requirements, and is installed in rotation without any tools.
Hollow design around, reduce wind resistance, low requirements for structural connectors.

Get A Free Quote Now

Description

For privacy reasons YouTube needs your permission to be loaded.

Performance

Size: φ300mm
Standard: GB14887-2011
Material: PC
Housing dust proof and waterproof rating: IP54
LED type: (φ5mm)
LED light angle: 30º
LED luminous intensity: red 4500-5500mcd, yellow 4000-5000mcd, green 9000-10500mcd
LED chromaticity values: red 620-625nm, yellow 589-591nm, green 503-505nm
Working hour: more than 100,000 hours
Rated voltage: 12V/24V, DC12/DC24 ( ±20%), AC220 50HZ(±2HZ)
Working temperature: -40ºС～80ºС
Working humidity: ≤95%

300mm road traffic signal light Technical Parameters

5mm LED (DIP)
Long life cycle – more than 100,000 working hours.
Highly durable polycarbonate housing, UV-light resistant.
Rational design for easy installation and maintenance.
Easy click-in open system or access using of wingnuts.
Fixation system with both PC and aluminum mounting brackets.

Product Model	LED quantity (pcs)			Rated voltage & power			Product size		Package
Product Model	R	Y	D	Rated voltage (V)	Maximum power (W)	Average power (W)	PC (mm)	Cast Aluminum (mm)	Packing Size (mm)	Pcs
JD3003-131S/L	96	96	96	DC12	2.3	1.84	1110360133	1068350124	1180410338	2
JD3003-231S/L	96	96	96	DC24	2.3	1.84				2
JD3003-431S/L	96	96	96	AC220	5.76	4.61				2
