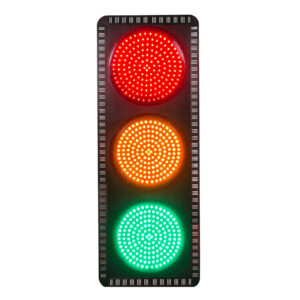

300mm traffic signal light
Product overview
300mm-Traffic signal lights from VTR are designed for easy installation.
- High – Brightness LED Source
The traffic signal light uses an ultra – high – brightness LED light source. It offers high clarity and a 600 – plus – meter visual range, ensuring clear signal identification. - Integrated Shell Design
The shell has an integrated molding design. Without separate decorative edges, it enables high – efficiency assembly. - Tool – Free Visor
The visor comes with a clasp, allowing tool – free installation. - Customizable Light – Emitting Unit
With an independent light – emitting unit, the traffic light can form various patterns as per international needs. Installation in rotation is tool – free. - Wind – Resistant Design
A hollow design around the traffic signal light reduces wind resistance and eases requirements for structural connectors.
Description
For privacy reasons YouTube needs your permission to be loaded.
I AcceptPerformance
300mm traffic signal light
Size: φ300mm
Standard: GB14887-2011
Material: PC
Housing dust proof and waterproof rating: IP54
LED type: (φ5mm)
LED light angle: 30º
LED luminous intensity: red 4500-5500mcd, yellow 4000-5000mcd, green 9000-10500mcd
LED chromaticity values: red 620-625nm, yellow 589-591nm, green 503-505nm
Working hour: more than 100,000 hours
Rated voltage: 12V/24V, DC12/DC24 ( ±20%), AC220 50HZ(±2HZ)
Working temperature: -40ºС～80ºС
Working humidity: ≤95%
300mm road traffic signal light Technical Parameters
300mm traffic signal light
- 5mm LED (DIP)
- Long life cycle – more than 100,000 working hours.
- Highly durable polycarbonate housing, UV-light resistant.
- Rational design for easy installation and maintenance.
- Easy click-in open system or access using of wingnuts.
- Fixation system with both PC and aluminum mounting brackets.
| Product Model | LED quantity (pcs) |
Rated voltage & power | Product size | Package | ||||||
| R | Y | D | Rated voltage (V) |
Maximum power (W) |
Average power (W) |
PC (mm) |
Cast Aluminum (mm) |
Packing Size (mm) |
Pcs | |
| JD3003-131S/L | 96 | 96 | 96 | DC12 | 2.3 | 1.84 | 1110*360*133 | 1068*350*124 | 1180*410*338 | 2 |
| JD3003-231S/L | 96 | 96 | 96 | DC24 | 2.3 | 1.84 | 2 | |||
| JD3003-431S/L | 96 | 96 | 96 | AC220 | 5.76 | 4.61 | 2 | |||
