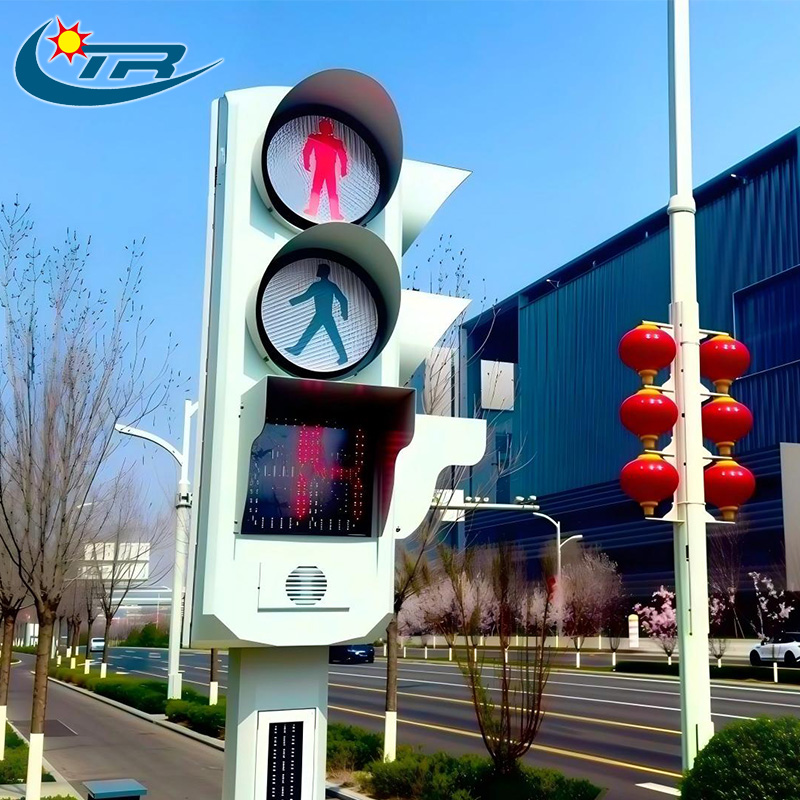

90° Double-sided Integrated Pedestrian Traffic Signal Light
As a modern traffic facility, the 90° dual-sided integrated pedestrian signal light optimizes urban traffic systems. It adopts an all-in-one structure for simple and fast installation.
Unlike traditional split devices, it integrates multiple functions in one unit. Furthermore, its 90° dual-sided design broadens viewing coverage.
Meanwhile, it supports static red and dynamic green pedestrian indication. Besides, it adds dual-color countdown and blind tone prompts. Thus, it delivers safer, clearer crossing guidance for pedestrians.
Description
Product Overview
To begin with, the 90° dual-sided integrated pedestrian signal light upgrades urban traffic operation.Specifically, it carries an all-in-one body to cut installation time greatly.In contrast to split signal equipment, it combines multiple built-in functions.Beyond that, its exclusive 90° dual-sided layout expands visible signal range.Simultaneously, it matches static red icons and moving green pedestrian graphics.Apart from that, it installs dual-color countdown timers and audio blind prompts.As a result, it brings clearer, safer crossing cues for all road pedestrians.
Key Product Highlights
- Integrated all-in-one structure simplifies on-site installation and maintenance
- 90° dual-sided luminous design realizes wide-range traffic reminder
- Dual-color countdown and blind tone function fit accessible traffic demands
- Stable LED light source ensures long-term outdoor working performance
Core Functional Design Advantages
In terms of lighting output, this signal light holds outstanding functional merits.First of all, static red icons clearly tell pedestrians to stop walking.In the next place, dynamic green patterns guide people to cross roads safely.What’s more, real-time dual-color countdown shows remaining waiting time.Most importantly, backward-spaced LED beads create even soft light brightness.At the same time, internal blind sound devices aid people with visual defects.In turn, this device achieves fully humanized public traffic guidance.
Technical Parameters
| Specification Item | Detailed Parameters |
| Product Name | 90° Dual-sided Integrated Pedestrian Signal Light |
| Product Model | YT300-3-43800-RKGL2M-II-M (90° dual-sided static red & dynamic green display, dual-color countdown, back-spacing LED beads, blind tone prompt) |
| Luminous Surface Size | 300mm |
| Light Source Type | LED (φ5mm) |
| LED Luminous Angle | 30° |
| LED Luminous Intensity | Red: 4500-5500mcd; Yellow: 4000-5000mcd; Green: 9000-10500mcd |
| LED Chromaticity Value | Red: 620-625nm; Yellow: 589-591nm; Green: 503-505nm |
| LED Quantity | Red LED: 72pcs; Green LED: 125pcs |
| LED Service Life | More than 50,000 hours |
| Rated Voltage | AC220V |
| Voltage Tolerance Range | ±20% |
| Frequency Range | ±2HZ |
| Lamp Pole Height | 3700mm |
| Display Content | Static red pedestrian signal, dynamic green pedestrian signal, red and green dual-color countdown |
| Product Weight | 65KG |
Conclusion
Taking everything into account, this integrated signal light owns balanced performance.For starters, it matches standard industrial specs and tough outdoor conditions.Additionally, it mixes practical signal control with accessibility-focused features.On one hand, it works well at city junctions and school zebra crossings.On the other hand, it fits crowded commercial pedestrian walkways too.In short, it acts as a cost-effective upgrade for smart city traffic systems.
