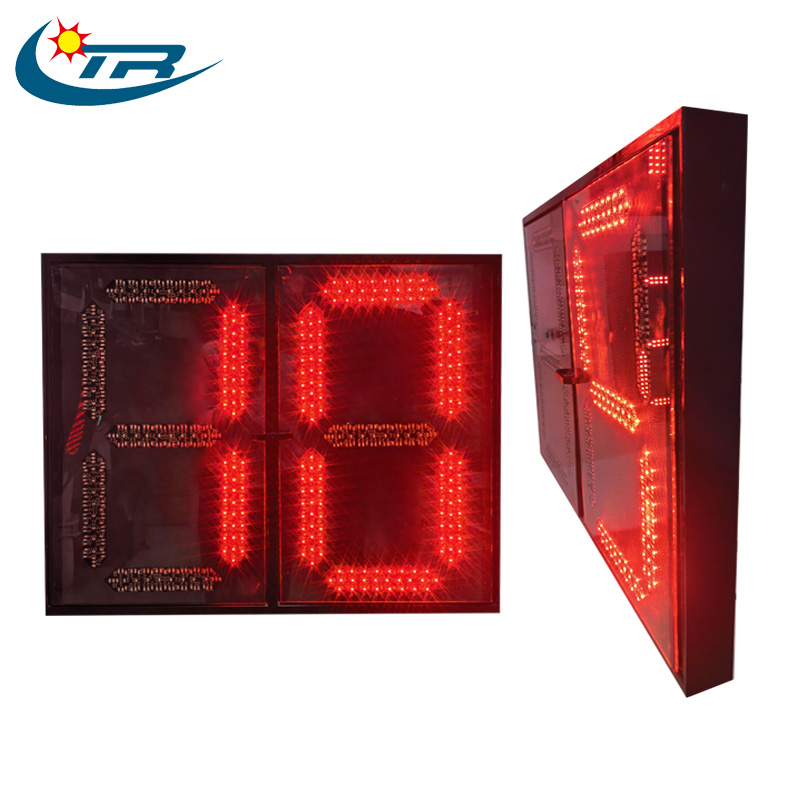

Double 8-digit Countdown Timer

A double 8-digit countdown timer is a core supporting traffic accessory. Firstly, it matches standard traffic signal light systems perfectly. In general, it provides accurate real-time time reminding for road users. Moreover, it improves the order of urban road traffic operation.

Unlike single-function timers, this device adopts dual 8-digit display design. Therefore, it presents red, yellow and green signal countdown data clearly.

Get A Free Quote Now

Description

Core Product Feature Highlights

Supports three working modes: communication, learning and trigger control
Adopts high-brightness LED luminous elements for clear long-distance display
Comes with IP54 dustproof and waterproof grade for outdoor use
Low power consumption design effectively reduces daily operating costs

Accurate External Size and Display Parameters

To start with, this countdown timer has a standard overall dimension. Its overall reaches 755mm×590mm×55mm. Besides, every single 8-digit display measures 350mm×550mm. Thus, it guarantees a large and visible display area.

In addition, it supports ultra-wide digital display range. It can show a maximum number of 99 for red, yellow and green signals respectively. Consequently, it fully meets the timing demands of most road intersections.

Reliable Structural and Protection Performance

Apart from excellent display effects, it owns sturdy structural quality. Specifically, its shell uses galvanized steel plate with electrostatic powder spraying. This material effectively resists outdoor corrosion and surface wear.

Furthermore, it reaches professional IP54 protection level. This grade prevents dust intrusion and splashing water erosion. As a result, it maintains stable working state in complex outdoor environments.

Stable Power Supply and Working Performance

In terms of power supply, it owns flexible and diverse power acquisition modes. It supports both municipal power and signal lamp power supply. Importantly, it adapts to AC220V±20% voltage and 50HZ±2HZ frequency range.

Besides, it features ultra-low power consumption with rated power ≤10W. Meanwhile, it works stably in extreme temperatures from -40℃ to +70℃. Accordingly, it suits all-weather outdoor long-term operation.

Conclusion

In summary, the double 8-digit countdown timer has comprehensive superior performance. On one hand, it delivers clear and accurate traffic timing cues. On the other hand, it boasts durable structure and strong environmental adaptability.

Undoubtedly, it is an essential auxiliary device for standardized urban traffic management. It effectively promotes safer and more orderly road travel for citizens.

Technical Parameters

Specification Item	Detailed Parameters
Luminous Element	LED
Overall Dimension	755mm × 590mm × 55mm
Single 8-digit Display Size	350mm × 550mm
Maximum Display Number	Red: 99; Yellow: 99; Green: 99
Working Mode	Supports Communication / Learning / Trigger Control
Shell Material	Galvanized Steel Plate with Electrostatic Powder Spraying
Dustproof & Waterproof Grade	IP54
Operating Voltage	AC220V±20%, 50HZ±2HZ
Power Supply Mode	Mains Power Supply / Signal Lamp Power Supply
Rated Power	≤10W
Operating Ambient Temperature	-40℃ ～ +70℃
