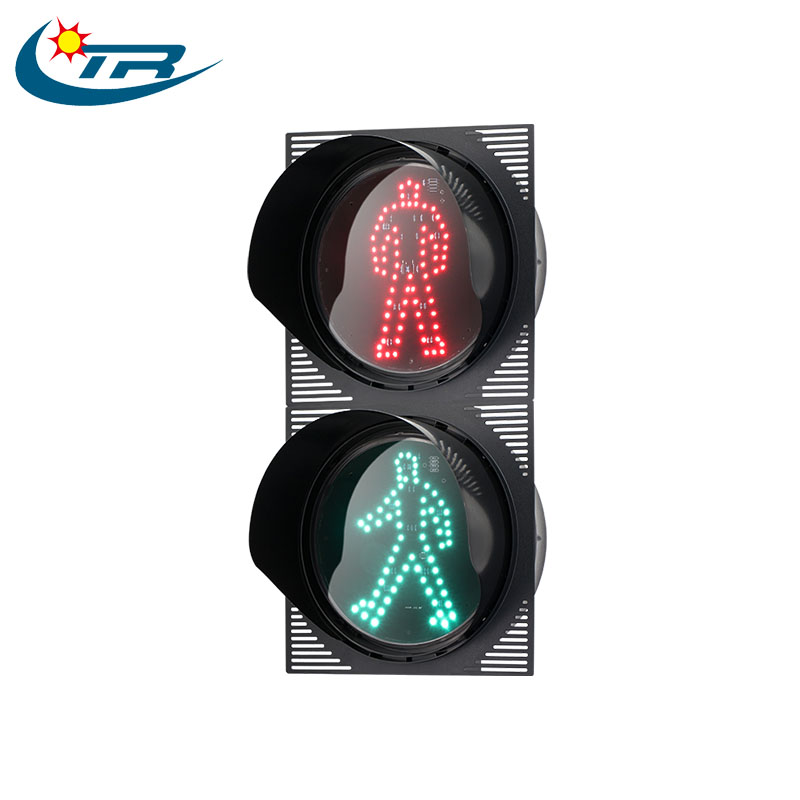

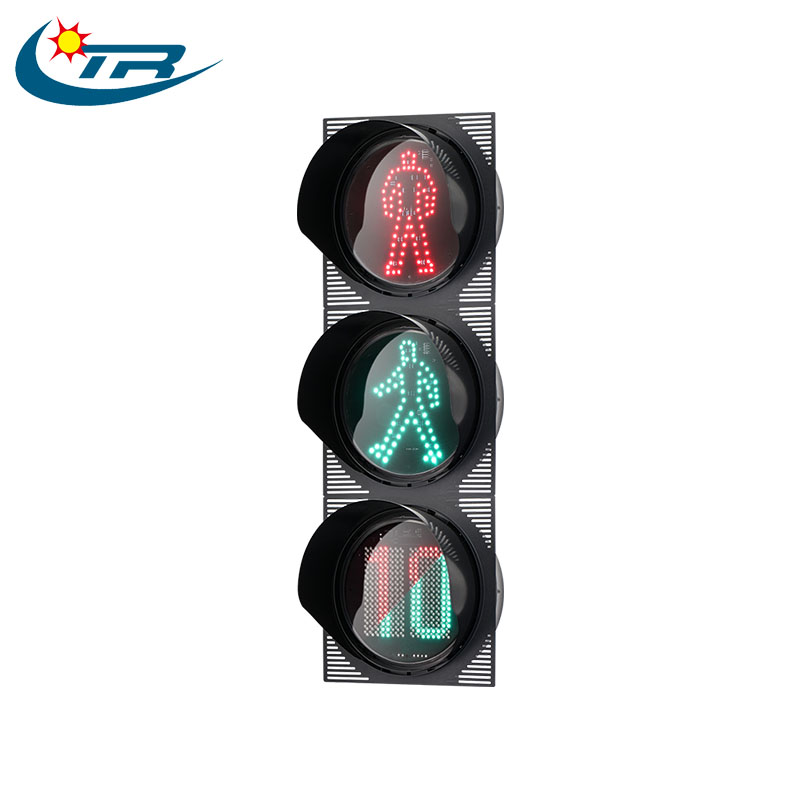

“Lego” road pedestrian traffic signal light

Installation advantages:

(1) Simple installation, bayonet-type traffic lights, using safe and waterproof wiring, one plug and done, greatly improving work efficiency;

(2) The lamp panel is easy to replace. Changing the lamp panel is like changing a light bulb. Personnel with zero experience can do it with just one turn.

(3) Integrated decorative edge, eliminating the traditional decorative edge spraying process, low carbon and environmentally friendly;

(4) Save installation time and reduce maintenance costs;

(5) Lower skill requirements for workers and lower training costs;

The main technical parameters:

（1）LED light-emitting diodes are four-element crystals;

（2）The traffic light power supply adopts an intelligent energy-saving signal light control circuit and provides certification documents;

（3）Rated power: Ø400mm single lamp rated power ≤ 24W; rated voltage: AC145~265V, 50HZ±2HZ;

（4）Visible distance Ø400mm signal light ≥400m

（5）Light source life: ≥100,000 hours, center wavelength: red 625nm, green 505nm, yellow 590nm
