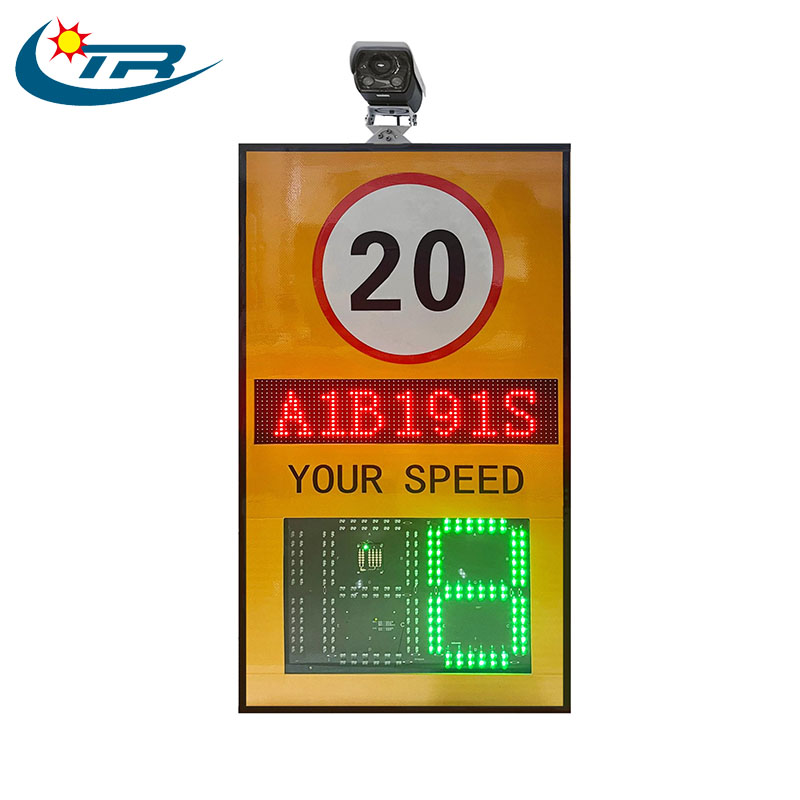

Camera Radar Speed Sign–Intelligent Speed Capture

This camera radar speed sign integrates radar and camera. It detects vehicle speed in real time and automatically captures speeding vehicles, serving as effective evidence for traffic management.

This device combines microwave radar detection, high-definition camera capture and intelligent control system. It works continuously to monitor passing vehicles, judge speeding behavior and complete automatic snapshot and data storage.

The built-in microwave radar emits electromagnetic waves. When a vehicle passes by, the waves reflect back. Based on the Doppler effect, the system calculates the real-time driving speed accurately.

Set the speed limit in advance. Once the detected speed exceeds the preset value, the main controller immediately sends a trigger signal to the camera module.

The camera activates instantly to take pictures or short videos, clearly capturing vehicle features, license plate number and driving scene. The fill light will turn on automatically at night to ensure clear imaging.

Captured files are saved in the local storage. The data can be exported or transmitted remotely, which provides valid visual evidence for road traffic supervision and law enforcement.

• Radar works all day long, unaffected by light, fog or rain.
• Radar and camera work synchronously, with low false trigger rate.
• Intelligent linkage design realizes automatic detection and capture without manual operation.

Features：

– 5 megapixel 1/ 1.8” progressive scan CCD, maximum resolution up to 2048* 1536 at a frame rate of 25 fps.

– Supports dual stream, with H264 video compression, high processing flexibility, and MJPEG encoding.

– The captured pictures are encoded in JPEG and the picture quality can be adjusted.

– Supports automatic flash control, synchronized flash output, input for red and green light signals.

– Supports intelligent identification, continuous capture of traffic violations, picture synthesis.

– Supports local video preview

– Supports hardware watchdog.

– Supports import and export of configuration files.



Other optional functions:

-Data statistics function

-Wireless remote control

-Wireless data download

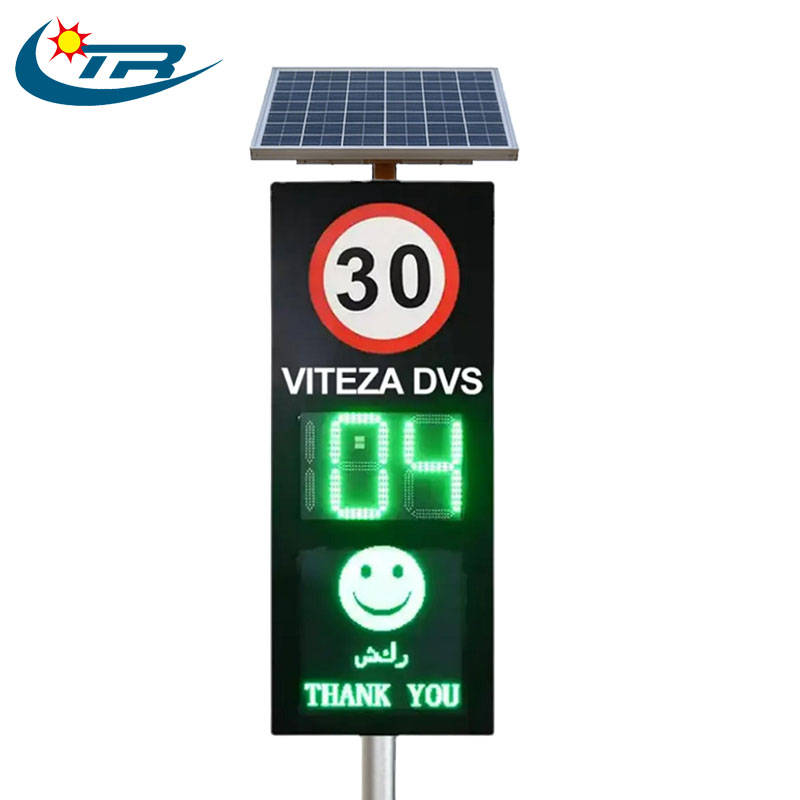

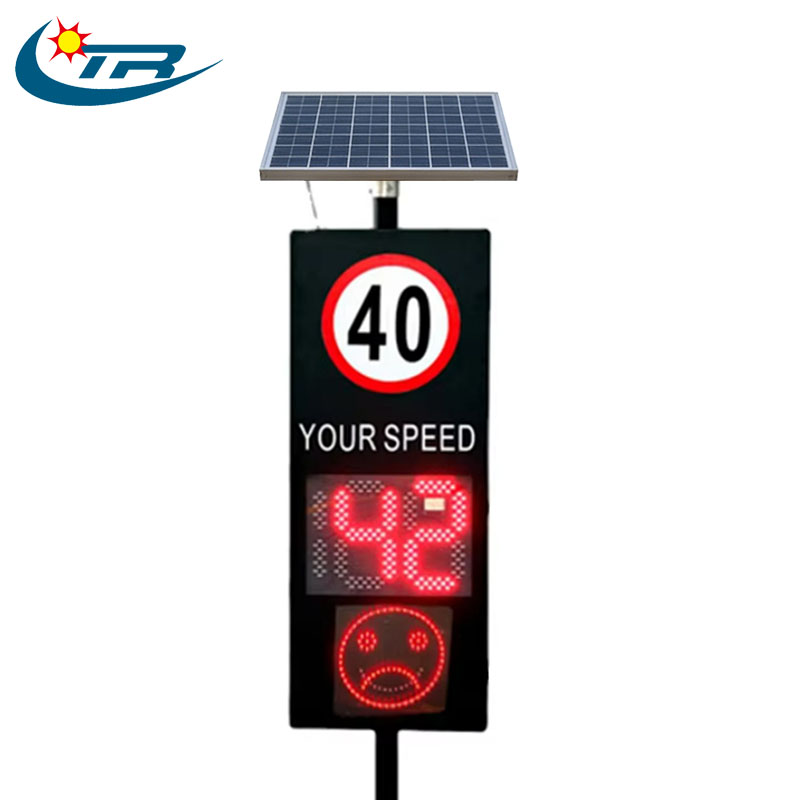

-Solar panel and battery

-Trailer
